1.Operating ambient temperature 使用環境溫度: -55°C~+125°C
2.Can be according to customers requirement to forming the special type. 可根據客戶要求制作特殊成型。
|
Power 功率 |
Resistance range 阻值范圍 |

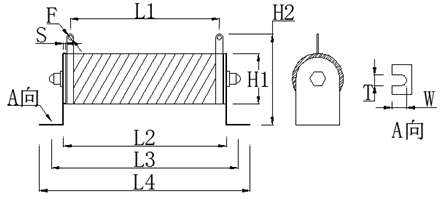

Dimensions 尺寸 |
Max. working Voltage 最大工作電壓 |
Max. overload voltage 最大負荷電壓 |
Max. insulation voltage 最高絕緣電壓 |
|||||||||
| L1±2 | L2±3 | L3±3 | L4±3 | H1±1 | H2± 2 | S ±0.5 | F±0.5 | W±1 | T±0.5 | |||||
| 25W | 0R22-4K7 | 40 | 60 | 75 | 100 | 20 | 50 | 5 | 3.5 | 13 | 5 | 300V | 300V | 450V |
| 50W | 0R22-10K | 82 | 100 | 114 | 140 | 30 | 58 | 6 | 5 | 14 | 6 | 400V | 400V | 600V |
| 100W | 0R22-15K | 132 | 150 | 174 | 200 | 30 | 58 | 6 | 5 | 14 | 6 | 500V | 500V | 750V |
| 150W | 0R33-18K | 162 | 180 | 194 | 220 | 30 | 58 | 6 | 5 | 14 | 6 | 600V | 600V | 900V |
| 200W | 0R33-22K | 207 | 225 | 240 | 265 | 30 | 58 | 6 | 5 | 14 | 6 | 700V | 700V | 1000V |
| 250W | 0R33-24K | 292 | 310 | 324 | 350 | 30 | 58 | 6 | 5 | 14 | 6 | 900V | 900V | 1300V |
| 300W | 0R33-27K | 258 | 270 | 285 | 328 | 41 | 85 | 7.8 | 6 | 23 | 6 | 1000V | 1000V | 1450V |
| 400W | 0R33-30K | 322 | 344 | 360 | 406 | 41 | 85 | 7.8 | 6 | 23 | 6 | 1500V | 1500V | 2200V |
| 500W | 0R33-33K | 322 | 344 | 355 | 406 | 51 | 95 | 7.8 | 6 | 26 | 8.5 | 1600V | 1600V | 2300V |
| 1000W | 0R33-36K | 290 | 315 | 325 | 375 | 71 | 110 | 10 | 8 | 32 | 8.5 | 1600V | 1600V | 2300V |
| 1500W | 0R33-39K | 405 | 420 | 435 | 505 | 71 | 110 | 10 | 8 | 32 | 8.5 | 1700V | 1700V | 2400V |
| 2000W | 0R33-43K | 495 | 525 | 540 | 610 | 71 | 110 | 10 | 8 | 32 | 8.5 | 1800V | 1800V | 2550V |
| 5000W | 0R33-43K | 600 | 630 | 645 | 710 | 100 | 140 | 10 | 8 | 32 | 8.5 | 1800V | 1800V | 2550V |
